Wastewater Products

Supply Scrubber

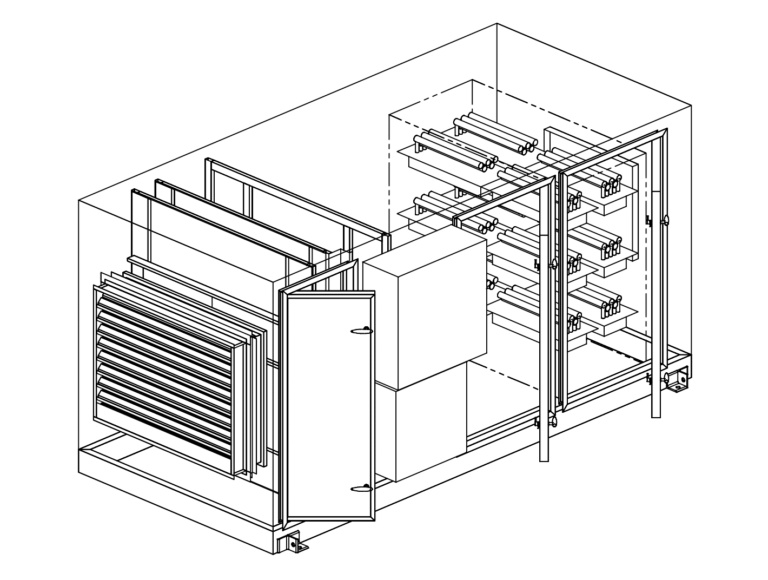

The Air+ Supply Scrubber is a custom designed, double wall, outdoor air handler that will deliver highly ionized air through a duct system into the building or tank head space. The ions react with hydrogen Sulfide (H₂S) and other odorous gases providing continuous odor reduction and corrosion protection. Heat can be incorporated combining 2 trades into one piece of equipment

Airflow Range:
1,000 – 100,000 CFM

Input Voltage:
120V, 240V or 480V

Energy Consumption:
Low

Communication:
Control Panel/SCADA Compatible

Safety:
Time Delay and Door Kill Switch

Application:
New or Existing Implementation

Heating Options:
Electric, Natural Gas, Propane

Odor Beast

Odor Beast Submittal

Odor Beast IOM Manual

Odor Beast Specs

Odor Beast

The Air+ Odor Beast is an ionization-based scrubber used for continuous odor reduction and corrosion protection for wet wells, lift stations, manholes and other facilities that contain high odor and hydrogen sulfide (H₂S) problems. This is a low maintenance and low cost approach to eliminating fugitive odors from the surrounding communit

Max Airflow:
550 CFM

Input Voltage:
120V or 240V

Energy Use:
150 Watts

Communication:
SCADA Compatible

Safety:
Time Delay and Door Kill Switch

Mounting:
Wall Lugs or 24” (H) Leg Kit

500F

Model 500F Submittal

500 Series IOM Manual

500F

Duct or air handler mounted tube-style ionizer with (5) F-tubes for commercial or industrial systems treating up to 10,000 CFM. Unit can be mounted in an air handler with a contractor supplied mounting bracket.

Max Airflow:
10,000 CFM

Input Voltage:
120V/230V 60Hz/50Hz

Energy Use:
50W

Tube Length Available:
F

Ionization Tube

Traditional glass tube producing industry-leading ions/cm3 ion density. Number and length of tube is determined by the volume of airflow treated and the severity of the pollutant. Tubes should be replaced annually.

Length:
F-Tube: 21”
E-Tube: 14”
D-tube: 10”
C-Tube: 6”

Energy Use:
F-Tube: 10 Watts
E-Tube: 8 Watts
D-tube: 6 Watts
C-Tube: 5 Watts

Max Airflow Treated:
F-Tube: 200 CFM
E-Tube: 160 CFM
D-tube: 100 CFM
C-Tube: 60 CFM
