The FM-6000 is an auto-cleaning needlepoint ionizer for mounting at the fan wheel inlet of residential or commercial FCUs, Heat Pumps, RTUs and other air handlers. The FM-6000 is validated to UL2998 – Zero Ozone Emissions.
Max Airflow:
6,000 CFM
Input Voltage:
12-24V AC or DC
Energy Use:
4.8 Watts
Auto Cleaning:
Yes
UL 2998 Certified:
Yes

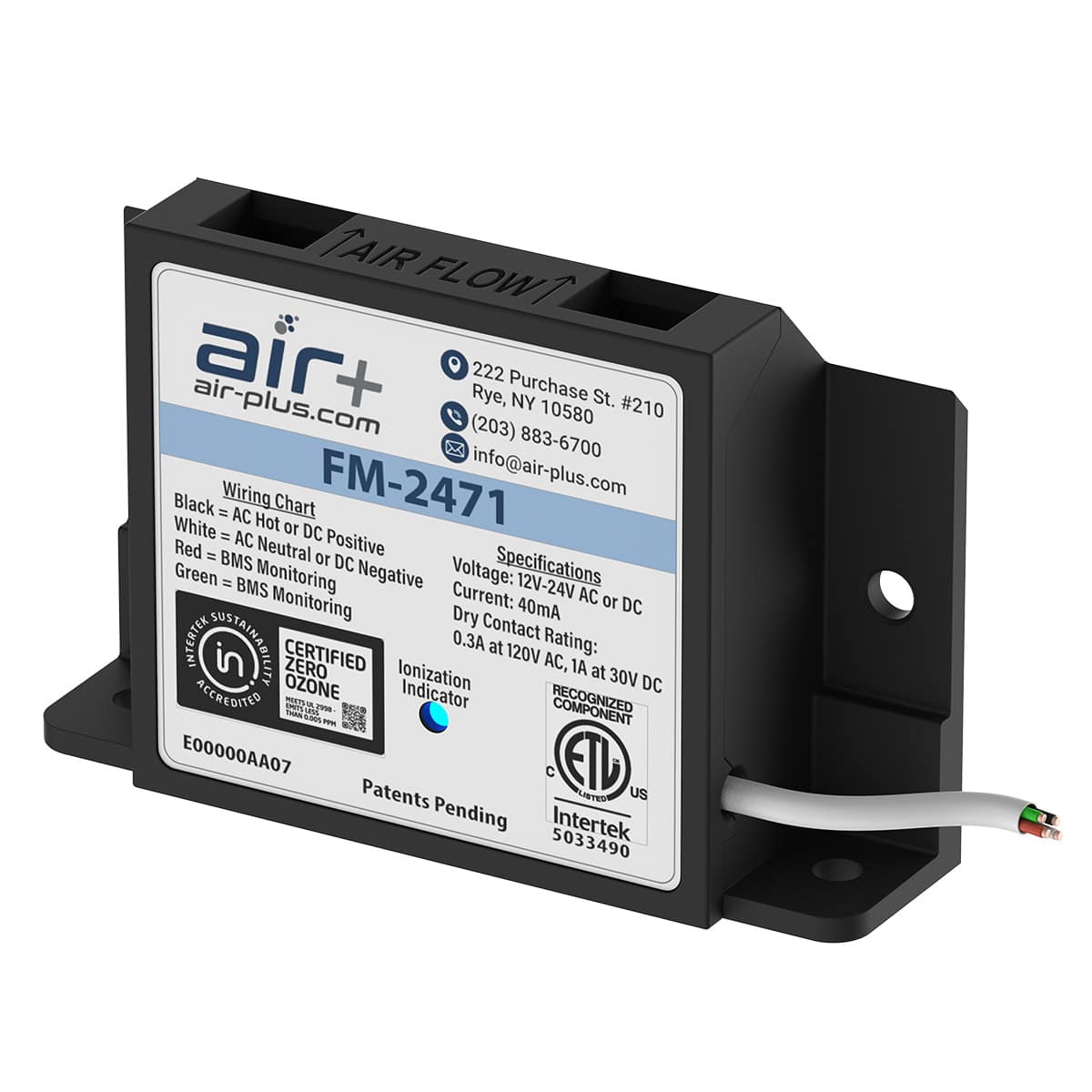

The FM-2400 is series of compact, brush-style needlepoint ionizers for mounting at the fan wheel inlet of residential or commercial FCUs, Heat Pumps, RTUs and other air handlers. The unit has integrated magnets to attach to a metallic fan housing. The FM-2400 is validated to UL2998 – Zero Ozone Emissions.
Max Airflow:
2,400 CFM
Input Voltage:
12-24V AC or DC (FM-2401/2471)
120V – 240V AC (FM-2403/2473)
Energy Use:
1 Watt
Auto Cleaning:
No
UL 2998 Certified:
Yes
Max Airflow:
2,400 CFM
Input Voltage:
12-24V AC or DC (FM-2401/2471)
120V – 240V AC (FM-2403/2473)
Energy Use:
1 Watt
Auto Cleaning:
No
UL 2998 Certified:
Yes
The DM-6000 is an auto-cleaning needlepoint ionizer for duct mounting on residential or commercial duct systems serving FCUs, Heat Pumps, RTUs, split systems, and other air handlers. The DM-6000 is validated to UL2998 – Zero Ozone Emissions.
Max Airflow:
6,000 CFM
Input Voltage:
12-24V AC or DC
Energy Use:
4.8 Watts
Auto Cleaning:
Yes
UL 2998 Certified:
Yes
Max Airflow:
30,000 CFM
Input Voltage:
24V DC
Power supply for
120V-230V
Energy Use:
28.8 Watts
Auto Cleaning:
Yes
UL 2998 Certified:
Yes
The DM-18000 is an auto-cleaning needlepoint ionizer for duct mounting on commercial duct systems serving FCUs, Heat Pumps, RTUs, split systems, and other air handlers. The DM-18000 is validated to UL2998 – Zero Ozone Emissions.
Max Airflow:
18,000 CFM
Input Voltage:
12-24V AC or DC
Energy Use:
14.4 Watts
Auto Cleaning:
Yes
UL 2998 Certified:
Yes
The DMR-6000 is an auto-cleaning needlepoint ionizer for duct mounting on residential or commercial round duct systems serving FCUs, Heat Pumps, RTUs, split systems, and other air handlers. The DMR-6000 is validated to UL2998 – Zero Ozone Emissionns.
Max Airflow:
6,000 CFM
Input Voltage:
12-24V AC or DC
Energy Use:
4.8 Watts
Auto Cleaning:
Yes
UL 2998 Certified:
Yes
The SC-2400 is an auto-cleaning needlepoint ionizer for mounting in collaboration with an adjacent indoor AC unit, FCU, Heat Pump, split system, and other indoor air handlers. The SC-2400 is validated to UL2998 – Zero Ozone Emissions.
Max Airflow:
2,400 CFM
Input Voltage:
12-24V AC or DC
Energy Use:
5 Watts
Auto Cleaning:
Yes
Duct or air handler mounted tube-style ionizer with (5) F-tubes for commercial or industrial systems treating up to 10,000 CFM. Unit can be mounted in an air handler with a contractor supplied mounting bracket.
Max Airflow:
10,000 CFM
Input Voltage:
120V/230V 60Hz/50Hz
Energy Use:
50W
Tube Length Available:
F
Duct or air handler mounted tube-style ionizer with (5) E-tubes for commercial or industrial systems treating up to 8,000 CFM. Unit can be mounted in an air handler with a contractor-supplied mounting bracket.
Max Airflow:
8,000 CFM
Input Voltage:
120V/230V 60Hz/50Hz
Energy Use:
35W
Tube Length Available:
E
Duct or air handler mounted single tube ionizer with (1) C-, D- or E-tube for commercial or industrial systems treating up to 3,000 CFM. Unit can be mounted in an air handler with a contractor supplied mounting bracket.
Max Airflow:
C = 1,000 CFM
D = 2,000 CFM
E = 3,000 CFM
Input Voltage:
120V/230V 60Hz/50Hz
Energy Use:
8W
Tube Length Available:
C, D or E
Duct or air handler mounted two-tube ionizer with (2) D- or E-tubes for commercial or industrial systems treating up to 5,000 CFM. Unit can be mounted in an air handler with a contractor supplied mounting bracket.
Max Airflow:
(2)D = 4,000 CFM
(2)E = 5,000 CFM
Input Voltage:
120V/230V 60Hz/50Hz
Energy Use:
16W
Tube Length Available:
D or E
The AirPlate features a pressure differential switch that activates at 0.05 In WG and a junction box for the termination of line voltage power. When mounted with a Model 100 or 200 ionizer, the AirPlate interlocks the ionizer’s power with airflow in the duct system.
Used With Models:
101
102
201
202
Input Voltage:
120V or 230V 60Hz/50Hz
Ion meter measuring positive or negative ion density. Unit can log data through USB connection.
Max Airflow:
N/A
Input Voltage:
120V AC power adapter
Energy Use:
10W
The Duct Ion Sensor will sense the presence of ions in a duct or air handler and close or open a dry contact to communicate with the Building Management System (BMS). The sensor includes LEDs for power and ion indication.
Range:
500 – 20,000 ions/cm3
Input Voltage:
12V or 24V AC or DC
Ion Polarity:
Positive or Negative
Airflow Range:
1,000 – 100,000 CFM
Input Voltage:
120V, 240V or 480V
Energy Consumption:
Low
Communication:
Control Panel/SCADA Compatible
Safety:
Time Delay and Door Kill Switch
Application:
New or Existing Implementation
Heating Options:
Electric, Natural Gas, Propane
The Air+ Odor Beast is an ionization-based scrubber used for continuous odor reduction and corrosion protection for wet wells, lift stations, manholes and other facilities that contain high odor and hydrogen sulfide (H2S) problems. This is a low maintenance and low cost approach to eliminating fugitive odors from the surrounding community.
Max Airflow:
550 CFM
Input Voltage:
120V or 240V
Energy Use:
150 Watts
Communication:
SCADA Compatible
Safety::
Time Delay and Door Kill Switch
Mounting:
Wall Lugs or 24” (H) Leg Kit
Traditional glass tube producing industry-leading ions/cm3 ion density. Number and length of tube is determined by the volume of airflow treated and the severity of the pollutant. Tubes should be replaced annually.
Length:
F-Tube: 21”
E-Tube: 14”
D-tube: 10”
C-Tube: 6”
Energy Use:
F-Tube: 10 Watts
E-Tube: 8 Watts
D-tube: 6 Watts
C-Tube: 5 Watts
Max Airflow Treated:
F-Tube: 200 CFM
E-Tube: 160 CFM
D-tube: 100 CFM
C-Tube: 60 CFM
