Products

FM-6000

The FM-6000 is an auto-cleaning needlepoint ionizer for mounting at the fan wheel inlet of residential or commercial FCUs, Heat Pumps, RTUs and other air handlers. The FM-6000 is validated to UL2998 – Zero Ozone Emissions.

Max Airflow:
6,000 CFM

Input Voltage:
12-24V AC or DC

Energy Use:
4.8 Watts

Auto Cleaning:
Yes

UL 2998 Certified:
Yes

Applications:

Education
Office
Leisure/Retail
Healthcare
Hotels/Leisure
Senior Living
Casino
Cannabis
Homes
New Construction

FM-2400

FM-2400 Submittal

FM-2400 IOM Manual

FM-2400

The FM-2400 is series of compact, brush-style needlepoint ionizers for mounting at the fan wheel inlet of residential or commercial FCUs, Heat Pumps, RTUs and other air handlers. The unit has integrated magnets to attach to a metallic fan housing. The FM-2400 is validated to UL2998 – Zero Ozone Emissions.

Max Airflow:
2,400 CFM

Input Voltage:
12-24V AC or DC (FM-2401/2471)
120V – 240V AC (FM-2403/2473)

Energy Use:
1 Watt

Auto Cleaning:
No

UL 2998 Certified:
Yes

Applications:

Education
Office
Leisure/Retail
Healthcare
Hotels/Leisure
Senior Living
Casino
Cannabis
Homes
New Construction

FM-2400

Max Airflow:
2,400 CFM

Input Voltage:
12-24V AC or DC (FM-2401/2471)
120V – 240V AC (FM-2403/2473)

Energy Use:
1 Watt

Auto Cleaning:
No

UL 2998 Certified:
Yes

FM-2400 Submittal

FM-2400 IOM Manual

Applications:

DM-6000

DM-6000 Submittal

DM-6000 IOM Manual

DM-6000

The DM-6000 is an auto-cleaning needlepoint ionizer for duct mounting on residential or commercial duct systems serving FCUs, Heat Pumps, RTUs, split systems, and other air handlers. The DM-6000 is validated to UL2998 – Zero Ozone Emissions.

Max Airflow:
6,000 CFM

Input Voltage:
12-24V AC or DC

Energy Use:
4.8 Watts

Auto Cleaning:
Yes

UL 2998 Certified:
Yes

Applications:

Education
Office
Leisure/Retail
Healthcare
Hotels/Leisure
Senior Living
Casino
Cannabis
Homes
New Construction

Ion Bar

Ion Bar Submittal

Ion Bar IOM Manual

Ion Bar

The Ion Bar is an AHU mounted self-cleaning needlepoint ionizer for commercial air handlers or roof top units. The Ion Bar ranges in size from 1 to 6 feet treating a maximum airflow of 30,000 CFM. Two bars can be controlled with one control panel.

Max Airflow:
30,000 CFM

Input Voltage:
24V DC
Power supply for
120V-230V

Energy Use:
28.8 Watts

Auto Cleaning:
Yes

UL 2998 Certified:
Yes

Applications:

Education
Office
Leisure/Retail
Healthcare
Hotels/Leisure
Senior Living
Casino
Cannabis
New Construction

DM-18000

DM-18000 Submittal

DM-18000 IOM Manual

DM-18000

The DM-18000 is an auto-cleaning needlepoint ionizer for duct mounting on commercial duct systems serving FCUs, Heat Pumps, RTUs, split systems, and other air handlers. The DM-18000 is validated to UL2998 – Zero Ozone Emissions.

Max Airflow:
18,000 CFM

Input Voltage:
12-24V AC or DC

Energy Use:
14.4 Watts

Auto Cleaning:
Yes

UL 2998 Certified:
Yes

Applications:

Education
Office
Leisure/Retail
Healthcare
Hotels/Leisure
Senior Living
Casino
Cannabis
New Construction

DMR-6000

DMR-6000 Submittal

DMR-6000 IOM Manual

DMR-6000

The DMR-6000 is an auto-cleaning needlepoint ionizer for duct mounting on residential or commercial round duct systems serving FCUs, Heat Pumps, RTUs, split systems, and other air handlers. The DMR-6000 is validated to UL2998 – Zero Ozone Emissionns.

Max Airflow:
6,000 CFM

Input Voltage:
12-24V AC or DC

Energy Use:
4.8 Watts

Auto Cleaning:
Yes

UL 2998 Certified:
Yes

Applications:

Education
Office
Leisure/Retail
Healthcare
Hotels/Leisure
Senior Living
Casino
Cannabis
New Construction

SC-2400

SC-2400 Submittal

SC-2400

The SC-2400 is an auto-cleaning needlepoint ionizer for mounting in collaboration with an adjacent indoor AC unit, FCU, Heat Pump, split system, and other indoor air handlers. The SC-2400 is validated to UL2998 – Zero Ozone Emissions.

Max Airflow:
2,400 CFM

Input Voltage:
12-24V AC or DC

Energy Use:
5 Watts

Auto Cleaning:
Yes

Applications:

Education
Office
Leisure/Retail
Healthcare
Hotels/Leisure
Senior Living
Casino
Cannabis
New Construction

500F

Model 500F Submittal

500 Series IOM Manual

500F

Duct or air handler mounted tube-style ionizer with (5) F-tubes for commercial or industrial systems treating up to 10,000 CFM. Unit can be mounted in an air handler with a contractor supplied mounting bracket.

Max Airflow:
10,000 CFM

Input Voltage:
120V/230V 60Hz/50Hz

Energy Use:
50W

Tube Length Available:
F

Applications:

Education
Office
Leisure/Retail
Healthcare
Hotels/Leisure
Senior Living
Casino
Cannabis
Wastewater
New Construction

500E

Model 500E Submittal

500 Series IOM Manual

500E

Duct or air handler mounted tube-style ionizer with (5) E-tubes for commercial or industrial systems treating up to 8,000 CFM. Unit can be mounted in an air handler with a contractor-supplied mounting bracket.

Max Airflow:
8,000 CFM

Input Voltage:
120V/230V 60Hz/50Hz

Energy Use:
35W

Tube Length Available:
E

Applications:

Education
Office
Leisure/Retail
Healthcare
Hotels/Leisure
Senior Living
Casino
Cannabis
Wastewater
New Construction

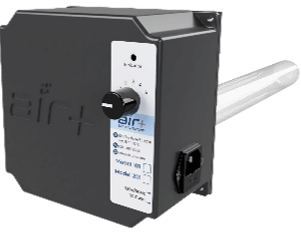

100C, 100D or 100E

Model 100 Submittal

100 Series IOM Manual

100C, 100D or 100E

Duct or air handler mounted single tube ionizer with (1) C-, D- or E-tube for commercial or industrial systems treating up to 3,000 CFM. Unit can be mounted in an air handler with a contractor supplied mounting bracket.

Max Airflow:
Up to 3,000 CFM

Input Voltage:
120V AC or 240V AC

Energy Use:
8 Watts

Auto Cleaning:
No

Applications:

Residential
Commercial buildings
AHUs / RTUs / duct systems
Education
Office
Healthcare
Hospitality
Industrial environments

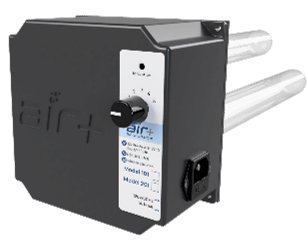

200D or 200E

Model 200 Submittal

200 Series IOM Manual

200D or 200E

Duct or air handler mounted two-tube ionizer with (2) D- or E-tubes for commercial or industrial systems treating up to 5,000 CFM. Unit can be mounted in an air handler with a contractor supplied mounting bracket.

Max Airflow:
Up to 4,000 CFM (D-tube)
Up to 5,000 CFM (E-tube)

Input Voltage:
120V AC or 240V AC

Energy Use:
16 Watts

Auto Cleaning:
No (manual tube cleaning required)

Applications:

Residential
Commercial buildings
Industrial applications
High-load environments (odor, VOCs, pathogens)
Casinos
Cannabis facilities
Restaurants / hospitality
Healthcare / senior living

AirPlate

Airplate IOM Manual

AirPlate

The AirPlate features a pressure differential switch that activates at 0.05 In WG and a junction box for the termination of line voltage power. When mounted with a Model 100 or 200 ionizer, the AirPlate interlocks the ionizer’s power with airflow in the duct system.

Used With Models:
101
102
201
202

Input Voltage:
120V or 230V 60Hz/50Hz

Applications:

Education
Office
Leisure/Retail
Healthcare
Hotels/Leisure
Senior Living
Casino
Cannabis
Wastewater
New Construction

Ion Meter

Ion Meter Submittal

Ion Meter IOM Manual

Ion Meter

Ion meter measuring positive or negative ion density. Unit can log data through USB connection.

Max Airflow:
N/A

Input Voltage:
120V AC power adapter

Energy Use:
10W

Applications:

Education
Office
Leisure/Retail
Healthcare
Hotels/Leisure
Senior Living
Casino
Cannabis
Wastewater
Homes
New Construction

Duct Ion Sensor

Duct Ion Sensor Submittal

Duct Ion Sensor IOM Manual

Duct Ion Sensor

The Duct Ion Sensor will sense the presence of ions in a duct or air handler and close or open a dry contact to communicate with the Building Management System (BMS). The sensor includes LEDs for power and ion indication

Range:
500 – 20,000 ions/cm³

Input Voltage:
12V or 24V AC or DC

Ion Polarity:
Positive or Negative

Applications:

Education
Office
Leisure/Retail
Healthcare
Hotels/Leisure
Senior Living
Casino
Cannabis
Wastewater
Homes
New Construction

Supply Scrubber

The Air+ Supply Scrubber is a custom designed, double wall, outdoor air handler that will deliver highly ionized air through a duct system into the building or tank head space. The ions react with hydrogen Sulfide (H₂S) and other odorous gases providing continuous odor reduction and corrosion protection. Heat can be incorporated combining 2 trades into one piece of equipment

Airflow Range:
1,000 – 100,000 CFM

Input Voltage:
120V, 240V or 480V

Energy Consumption:
Low

Communication:
Control Panel/SCADA Compatible

Safety:
Time Delay and Door Kill Switch

Application:
New or Existing Implementation

Heating Options:
Electric, Natural Gas, Propane

Applications:

Wastewater

Odor Beast

Odor Beast Submittal

Odor Beast IOM Manual

Odor Beast Specs

Odor Beast

The Air+ Odor Beast is an ionization-based scrubber used for continuous odor reduction and corrosion protection for wet wells, lift stations, manholes and other facilities that contain high odor and hydrogen sulfide (H₂S) problems. This is a low maintenance and low cost approach to eliminating fugitive odors from the surrounding communit

Max Airflow:
550 CFM

Input Voltage:
120V or 240V

Energy Use:
150 Watts

Communication:
SCADA Compatible

Safety:
Time Delay and Door Kill Switch

Mounting:
Wall Lugs or 24” (H) Leg Kit

Applications:

Wastewater

Ionization Tube

Traditional glass tube producing industry-leading ions/cm3 ion density. Number and length of tube is determined by the volume of airflow treated and the severity of the pollutant. Tubes should be replaced annually.

Length:
F-Tube: 21”
E-Tube: 14”
D-tube: 10”
C-Tube: 6”

Energy Use:
F-Tube: 10 Watts
E-Tube: 8 Watts
D-tube: 6 Watts
C-Tube: 5 Watts

Max Airflow Treated:
F-Tube: 200 CFM
E-Tube: 160 CFM
D-tube: 100 CFM
C-Tube: 60 CFM

Applications:

Wastewater
